MuxLab Video over IP Solutions

HDMI / RS232 over IP Extender Kit with PoE



Product Code: 500753

The HDMI / RS232 over IP Extender Kit with PoE allows HDMI equipment to be connected to distances up to 100m @ 1080p via single Cat5e/6 in a point-to-point configuration over a LAN infrastructure. Point-to-multipoint and multipoint-to-multipoint is possible by connecting several encoders and decoders to the same Ethernet network. The Encoder (500753-TX) and Decoder (500753-RX) also support PoE (PD) if used with a PoE Ethernet Switch. The kit comes with one (1) Encoder and one (1) Decoder as well as an IR Emitter and IR Sensor for remote control applications. For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet switch must have Gigabit ports, DHCP Server capability and IGMP communications protocol. We recommend using the Cisco SG300 Series Managed Switches. The MuxLab Management Software is available to simplify the configuration and utilisation of the 500753. The software can be downloaded directly from the MuxLab Web Site here.



  • HDMI 1.3, PoE powered

  • Supports resolutions up to 1080p

  • Supports IR, and RS232 transmission

  • Motion JPEG compression with very low latency (1 frame)

  • Transmission up to distances of 100m

  • Distances up to 120m between the TX and RX when no LAN switch is used

  • Control via Windows-based software or via any web device (mobile, tablet) with use of model 500811 Pro Digital Network Controller.

Video Wall over IP Extender Kit with PoE



Product Code: 500754

The Video Wall over IP Extender Kit with PoE allows HDMI equipment to create a Video Wall of user configurable size (X by Y) to a maximum of 200 screens, utilising one receiver for each display in the array. The transmitter unit/s are connected using a LAN switch (PoE or non-PoE), with maximum distances of 100m of Cat infrastructure between equipment. The MuxLab management software is available to simplify configuration and control. Software can be downloaded directly from the MuxLab website here. The transmitter (500754-TX) and receiver (500754-RX) also support PoE (PD) if used with a PoE Ethernet switch. The kit comes with one (1) transmitter and one (1) receiver as well as an IR Emitter and IR Sensor for remote control applications. Receiver units available separately (500754-RX). For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet switch must have Gigabit ports, DHCP server capability and IGMP communications protocol.



  • Configure a Video Wall array with a maximum 200 displays

  • HDMI 1.3

  • PoE powered

  • Supports up to 1080p resolutions

  • Supports IR, and RS232 transmission

  • Visually lossless video (1 frame latency)

  • Transmission up to 100m over Cat5e/6

  • Transmission up to 120m between one (1) TX and one (1) RX when no LAN switch is used in a point-to-point scenario

  • Control via any web device (mobile, tablet) with use of model 500811 Pro Digital Network Controller

ProDigital Network Controller

Product Code: 500811

The MuxLab ProDigital Network Controller is a Linux based PC that allows users to control hub-installed MuxLab products and the 500754 (Video Wall over IP with RS232) via an Ethernet Web interface. When installed on a local area network (LAN), the MuxLab Network Controller will scan the LAN for connected MuxLab products allowing the user to configure and control these products through an Ethernet Web interface from a tablet, smartphone or computer.



  • Centralises control of all MuxLab products within a system

  • Provides a web interface to manage & control MuxLab products

  • Provides a mobile web interface for smartphones and tablets

  • Provides control APIs (IP & RS-232) for third party control integration

  • Supports I/O pre-sets to be configured

  • Serves as a base platform to develop automation control applications

  • Supports software upgrades in the field

3G-SDI / RS232 over IP Receiver with POE

Product Code: 500756-RX

The MuxLab 500756 – 3G-SDI /RS232 over IP Extender with PoE allows easy extension and distribution of broadcast quality SDI, HD-SDI or 3G-SDI video with embedded audio over local area networks (LAN).



This low-latency and versatile extender kit consists of individual transmitter and receiver units which can be configured in a variety of combinations. It is a cost effective alternative to a dedicated SDI matrix switch. The 3G-SDI over IP extender allows users to send any SDI signals over CAT5/6 cable infrastructure instead of using the traditional SDI coax infrastructure, saving cable cost and making installation easy and fast. This extender kit is ideal for many quality critical video/audio applications such as original video source contribution, live video delivery around the broadcast facility or running media exchanges between different studios within the facility.



Note: This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet Switch. If a PoE (PSE) Ethernet Switch is unavailable, then the power supply (500993) may be purchased separately.



  • Supports up to 1080p resolutions

  • Motion JPEG compression with very low latency

  • Supports 100's of Transmitters and Receivers, depending on network bandwidth

  • LAN Switch based configurations support point-to-point, point-to-multipoint, and multipoint-to-multipoint

  • Extend transmission up to 330ft (100m) over an IP network (when a LAN Switch is used)

  • Extend transmission up to 400ft (120m) in a point-to-point configuration (when a LAN Switch is not used)

  • Supports RS232 and one way IR transmission for remote control of end devices

  • PoE Powered

  • Compatible with the 500811 ProDigital Network Controller for software management

  • Compatible with 500752, 500753, and 500754 products

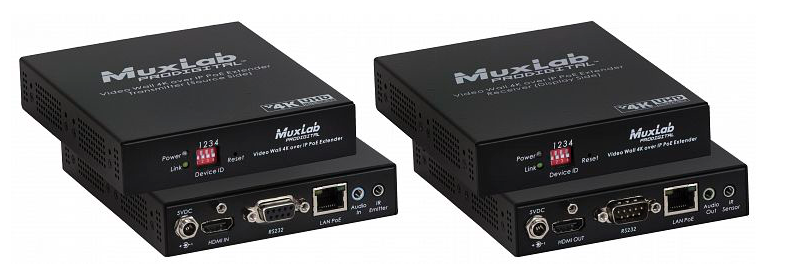

Video Wall 4K over IP POE Extender Kit

Product Code: 500759, 500759-TX, 500759-RX

The Video Wall 4K over IP PoE Extender Kit allows HDMI equipment supporting up to 4K @ 30Hz or 1080p at 60Hz resolution to be connected and extended to create a Video Wall of user configurable size (X by Y) supporting 100’s of screens, depending on network bandwidth, utilizing one Receiver for each display in the array. Each Transmitter (500759-TX) and Receiver (500759-RX) can be connected via Cat5e/6 cable up to 330ft (100m) from an Ethernet Switch. The Transmitters and Receivers support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch. The kit comes with one (1) Transmitter and one (1) Receiver. The IR Emitter and IR Sensor, if required, may be purchased separately for IR based remote control applications.



The MuxLab Pro Digital Network Controller (500811) is available to simplify configuration and control and allows for third party smartphone and tablet management.



Note: This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet Switch. If a PoE (PSE) Ethernet Switch is unavailable, then the power supply (500993) may be purchased separately.



  • Configure a Video Wall array with 100’s of displays, depending on network bandwidth

  • Supports up to 4K @ 30Hz and 1080p @ 60Hz

  • Visually lossless video (1 frame latency)

  • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications

  • Transmission up to 330ft (100m) over Cat5e/6

  • Supports audio insert (TX) & audio extract (RX)

  • Supports RS232 and IR transmission for remote control

  • PoE powered

  • Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)

Video Wall over IP Extender Kit with POE

Product Code: 500754, 500754-TX, 500754-RX

The Video Wall over IP Extender Kit with PoE allows HDMI equipment to be connected to create a Video Wall of a user configurable size (X by Y) supporting 100’s of screens, depending on network bandwidth, utilising one receiver for each display in the array.



The transmitter unit is connected using a LAN switch (PoE or non-PoE), with maximum distances of 330ft (100m) of Cat5e/6 cable between equipment.



Set-up and configuration of the video wall function is carried out using the MuxLab ProDigital Network Controller (500811) – sold separately.

Typical Applications

  • Digital signage

  • Control room applications

  • Medical imagery

  • Retail

  • Hospitality / entertainment displays

Note: This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet Switch. If a PoE (PSE) Ethernet Switch is unavailable, then the power supply (500992) may be purchased separately.



  • Configure a Video Wall array with 100's of displays, depending on network bandwidth

  • HDMI 1.3

  • Supports up to 1080p resolutions

  • Visually lossless video (1 frame latency)

  • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications

  • Transmission up to 330ft (100m) over Cat5e/6

  • Transmission up to 390ft (120m) between one (1) TX and one (1) RX when no LAN switch is used in a point-to-point scenario

  • Supports RS232 and IR transmission for remote control

  • PoE powered

  • Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)

  • Receivers also sold individually (500754-RX)
